How Should a 60,000-Bird Broiler Farm Be Planned Without Grid Electricity?

A 60000 broiler farm in Zimbabwe can be divided into two independent 30,000-bird production houses, each measuring 135 × 15 × 2.5 m. The confirmed floor-rearing equipment plan uses five nipple drinking lines with 532 nipples per line and four automatic feeding lines with 177 pans per line in each house.

The main project challenge is not only bird capacity. The farm has no utility-grid connection, so feeding, drinking, heating, lighting and other electrical loads must be classified before the energy system is selected. For this project, a hybrid strategy combining solar PV, battery-supported critical loads and generator backup is more appropriate than relying on either solar or a generator alone.

Production economics should also be planned by batch. A 42-day growing period can be used as a planning benchmark, followed by cleaning, disinfection and downtime before the next flock. However, survival rate, feed intake, market weight, feed price and selling price must remain scenario inputs until the actual chick breed, feed program and buyer contract are confirmed.

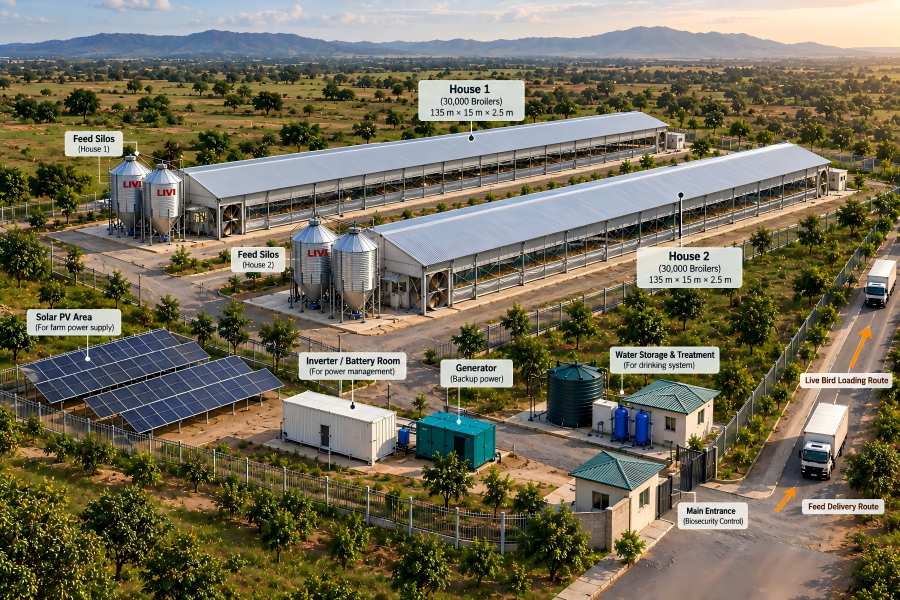

This project uses two open-sided broiler houses instead of concentrating all 60,000 birds inside one building.

Each house has a gross floor area of:

At approximately 30,000 birds per house, the gross planning density is:

This is a planning calculation, not a final stocking-density recommendation. Final stocking density must be checked against market weight, climate, ventilation capacity, litter management, bird welfare requirements and the customer’s production standard.

The two-house structure also creates two identifiable production units. Feeding, drinking, heating and curtain management can be checked house by house rather than treating 60,000 birds as one undivided equipment load.

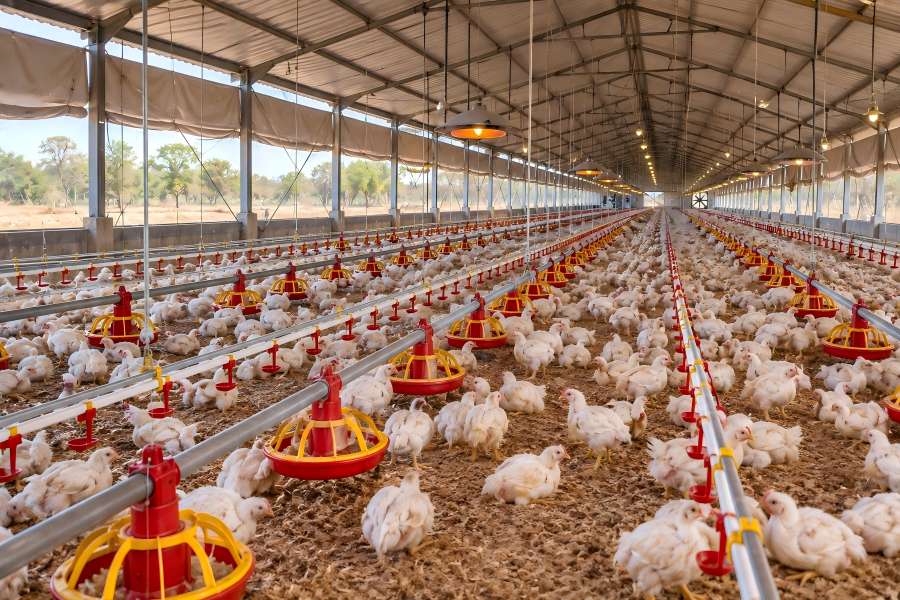

A commercial broiler floor-rearing house needs to distribute feeding and drinking access throughout the usable floor area rather than concentrating birds around a small number of points.

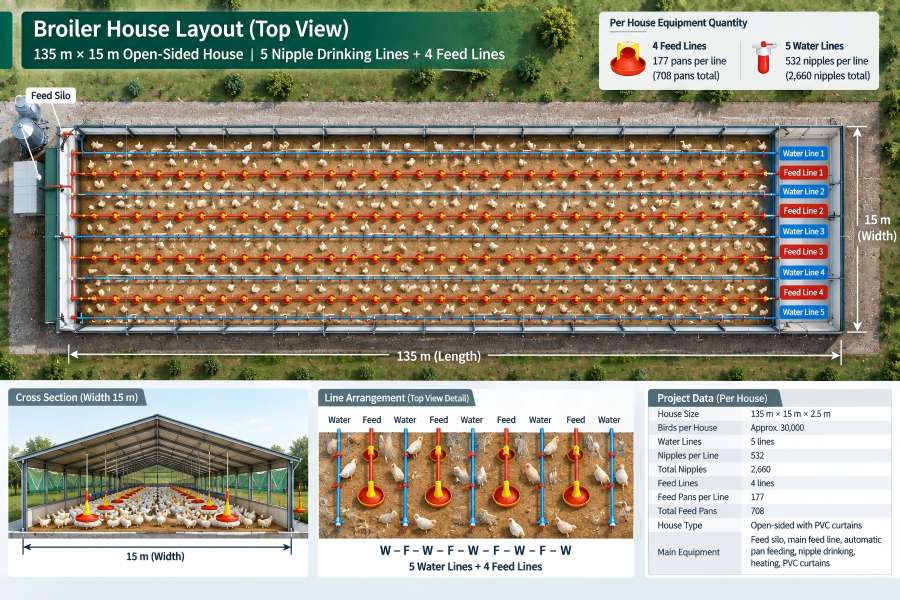

The confirmed equipment configuration for each 135 m house is:

Drinking-Point Planning Check

Feed-Pan Planning Check

These calculations are useful for checking whether the equipment quantity corresponds logically with the planned flock. They do not replace the equipment manufacturer’s operating recommendations, bird-age adjustments or actual house commissioning.

The LIVI broiler pan feeding system connects feed storage and conveying with automatic pan distribution throughout the house. The equipment route should be planned as:

For product specifications and system components, see the LIVI Broiler Pan Feeding System .

The project deliberately uses one more drinking line than feeding line.

For a 15 m wide floor-rearing house, this allows water and feed access to be distributed across the width instead of placing all resources along a limited number of longitudinal routes.

The exact lateral spacing should be confirmed in the final layout drawing together with wall clearance, brooding zones, service access and equipment suspension positions.

The drinking system should also be treated as more than 2,660 individual nipples. A complete commercial water route should consider:

The LIVI automatic poultry drinking system can integrate nipple drinkers, pressure control, drinking pipes, lifting components and medication equipment according to the final farm design.

See the Automatic Poultry Drinking System for the system structure and selection factors.

The confirmed poultry-house concept is open-sided and uses PVC curtains together with heating. This means environmental management changes with bird age, outside temperature, wind and weather.

PVC curtains provide a controllable building interface. They can be adjusted as conditions change, but they should not be treated as a substitute for a complete ventilation strategy.

Brooding Stage

Young chicks require a carefully managed thermal environment. The heating system therefore needs to be coordinated with curtain position, air exchange and the brooding area.

Growing Stage

As birds grow, metabolic heat and moisture output increase. The environmental priority shifts toward removing excess heat, moisture and stale air while maintaining suitable conditions at bird level.

The final solution should therefore evaluate:

• local temperature and seasonal conditions;
• prevailing wind;
• house orientation;
• 15 m house width;
• bird age and target market weight;
• stocking density;
• curtain operating strategy;
• whether supplementary mechanical ventilation is required.

The farm should not assume that “open-sided” means “no ventilation equipment required.” Environmental design must be confirmed from actual site conditions.

This project has no utility-grid electricity connection.

That changes the project design significantly because electricity is no longer a secondary building service. It becomes part of the production infrastructure.

Zimbabwe’s current national energy strategy supports greater use of distributed renewable energy, mini-grids and standalone systems. The country’s National Energy Compact also identifies a substantial role for off-grid electrification and targets continued expansion of renewable generation.

For this farm, the practical question is therefore not simply: “Solar or generator?”

A better question is:

Recommended Architecture: Solar + Battery + Generator

For a remote commercial farm, this hybrid architecture is generally more resilient than designing the project around solar-only or generator-only operation.

Zimbabwe’s electricity sector continues to face reliability constraints. ZETDC explains that load shedding is used when available generation cannot meet demand and also notes that unplanned system events can require supply interruptions outside published schedules.

For this project the site currently has no grid connection at all, so grid reliability is not the immediate operating issue. The more relevant lesson is that the farm should be designed for energy independence from the beginning rather than assuming a future grid connection will solve its production requirements.

Zimbabwe’s National Energy Compact supports standalone and distributed renewable-energy systems, while the national renewable-energy framework provides a policy basis for solar deployment.

Recommended Load Hierarchy

What Size Solar System and Generator Does the Farm Need?

There is not enough confirmed information to specify a responsible kW, kWh or kVA figure yet.

The correct engineering sequence is:

The customer should therefore provide the final motor list, pump specifications, lighting, heating source and any planned ventilation equipment before the electrical system is sized.

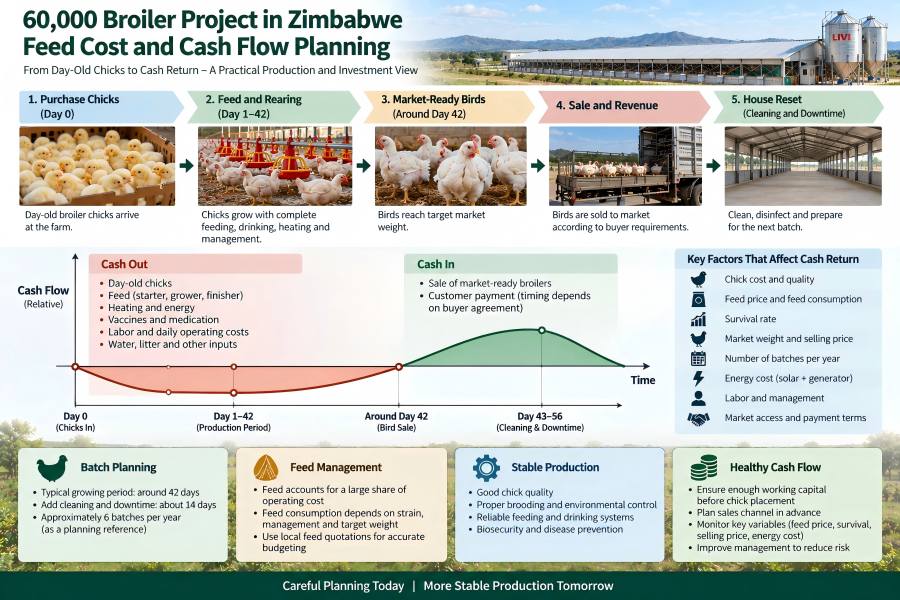

Broiler production should be planned as a repeating cash-conversion cycle rather than as a continuous production process.

Because the project has not yet confirmed the broiler strain, target slaughter weight or buyer specification, the production calendar below is a planning model rather than a guaranteed result.

Using a conservative planning calendar of approximately 42 growing days plus 14 days for depopulation, cleaning, disinfection, maintenance and preparation gives:

The mathematical maximum is slightly higher, but an investment model should not assume perfect turnaround with no delays. Six full production cycles per year is a more useful starting scenario until the customer’s actual production schedule is confirmed.

Should Both Houses Start on the Same Day?

There are two possible management approaches.

Same-time placement simplifies an all-in/all-out farm calendar and creates one large sales batch, but it also concentrates chick purchases, feed demand and sales revenue into the same periods.

Staggered placement can spread purchases and sales over time, but it creates different bird ages on the farm and requires stronger separation of people, equipment and biosecurity procedures between houses.

The final batch strategy should therefore be selected together with the customer’s chick supplier, buyer contracts, biosecurity plan and working-capital capacity.

No actual survival result exists yet for this project, so LIVI should not advertise a guaranteed survival percentage.

Instead, the investor can stress-test the project with several scenarios:

These percentages are financial-model assumptions only. They are not confirmed outcomes for the Zimbabwe project.

Actual survival depends on chick quality, brooding, feed, water, disease control, biosecurity, stocking density, litter condition, environmental management and farm management.

Feed is one of the most important working-capital variables in a 60,000-bird broiler project.

Because the broiler breed has not been confirmed, the project should not claim a fixed feed consumption figure.

As an external technical benchmark, Ross 308 performance objectives list approximately 4.586 kg cumulative feed intake per living bird at day 42 under the published performance objective conditions.

This is a benchmark—not a prediction for this Zimbabwe farm.

42-Day Feed Planning Example

A better investment model should also test lower and higher feed-use scenarios:

The final feed budget should use the selected broiler strain, target slaughter weight, actual feed program and supplier quotation.

Broiler farming has a shorter cash-conversion cycle than layer production, but the farm still needs enough working capital to finance the flock before the first major sales receipt arrives.

For this reason, the investor should not calculate working capital from equipment cost alone. The farm needs operating cash before the first flock is sold.

Illustrative Cash-Return Stress Test

A current Zimbabwe poultry-market signal lists approximately US$4.80 for a 2 kg live broiler and approximately US$0.45 for a day-old broiler chick. These are market reference signals, not contracted prices for this project.

At US$0.45 per chick, 60,000 chicks would represent an illustrative placement cost of US$27,000 before transport or other chick-related costs.

These sales figures must not be interpreted as profit.

A complete cash-flow model still needs to deduct:

• day-old chicks;
• starter, grower and finisher feed;
• vaccines and medication;
• litter;
• heating fuel or energy;
• solar / generator operating costs;
• labor;
• water;
• equipment maintenance;
• bird transport;
• slaughter or processing where applicable;
• marketing and sales costs;
• mortality losses;
• financing costs;
• taxes and other local operating costs.

The correct financial equation is:

Only after this calculation should the investor estimate project payback or ROI.

A useful broiler poultry farm business plan Zimbabwe should not rely on one best-case spreadsheet.

The investment model should stress-test at least five variables:

This sensitivity analysis is more useful than publishing a fixed statement such as “broiler farming returns investment in X months.”

The farm should also secure its sales channel before placing the flock. A 60,000-bird operation needs buyers capable of absorbing commercial volumes on a predictable schedule.

The project already provides a clear house and equipment basis, but several inputs remain necessary before LIVI Machinery can finalize construction interfaces and the off-grid power system.

13

Frequently Asked Questions About the Zimbabwe Broiler Project

1. How many poultry houses are needed for this 60,000-broiler project?

The confirmed plan uses two open-sided houses, each measuring 135 × 15 × 2.5 m and housing approximately 30,000 broilers. Another 60,000-bird project may require a different number or size of houses depending on stocking density, climate and production strategy.

2. How many feeding and drinking lines are used in each house?

Each house uses four automatic feeding lines with 177 pans per line, giving 708 pans, and five drinking lines with 532 nipples per line, giving 2,660 nipples.

3. Can a commercial broiler farm operate without grid electricity in Zimbabwe?

Yes, but the energy system must be engineered around the actual equipment loads. For this off-grid project, a hybrid solar, battery and generator architecture should be evaluated. The final PV, battery and generator capacities cannot be determined until the electrical load schedule and heating source are confirmed.

4. What generator size is needed for 60,000 broilers?

There is no reliable birds-to-kVA formula. Generator sizing should use rated loads, motor starting loads, simultaneous operation, critical loads and the planned solar/battery contribution.

5. How much feed will 60,000 broilers consume in one cycle?

Actual feed demand depends on breed, market age, target weight and farm performance. As a technical benchmark, a 42-day Ross 308 performance objective is approximately 4.586 kg cumulative feed per living bird. Applied only as a planning reference, 60,000 placed birds would correspond to about 275 tonnes of feed. The actual project budget must use the selected breed and feed program.

6. How many broiler batches can the farm raise per year?

Using an illustrative 42-day growing period plus approximately 14 days for sale, cleaning, disinfection, maintenance and preparation gives a 56-day planning cycle. A conservative investment model can begin with approximately six complete batches per year and then replace this assumption with the farm’s actual production calendar.

7. Is a 60,000-broiler farm profitable in Zimbabwe?

Profitability cannot be determined from bird capacity alone. It depends on chick cost, feed price and consumption, survival, sale weight, broiler selling price, heating and energy, labor, health, transport, financing and other operating costs. Investors should model downside, base and upside scenarios before committing capital.

The equipment numbers are already well defined. The next stage is to connect them to the resources that determine whether the farm can operate reliably: water, feed, heat, electricity, biosecurity and market access.

For this reason, LIVI Machinery should not treat the project as a simple sale of 1,416 feed pans and 5,320 nipple drinkers. The more important task is coordinating the two poultry houses with feed delivery, water infrastructure, environmental management and an off-grid energy strategy.

The same principle applies to the financial model. Feed cost, survival rate and selling price should be treated as variables, not marketing promises. The investor can then see how much working capital is required before placement, when cash is likely to return after bird sales, and how changes in feed or market prices affect the next production cycle.

That turns a large-scale broiler farm in Zimbabwe from an equipment list into a production and investment plan.
