Automatic Egg Collection System for Commercial Layer Farms
Livi automatic egg collection system reduces labor and egg damage with efficient egg conveyors, elevators and customized solutions for layer farms.
Quick Answer
Livi’s Automatic Egg Collection System is designed for commercial layer farms to improve egg collection efficiency, reduce labor costs and minimize egg breakage. The system integrates egg belts, egg lifting devices, conveyors and central collection equipment, providing an automated solution for H Type and A Type layer cage systems.
Planning a Commercial Layer Farm?
Get a customized automatic egg collection solution based on your farm capacity.
Button: Get Free Farm Design
What Is an Automatic Egg Collection System?
For commercial egg producers, collecting thousands or hundreds of thousands of eggs every day is a major farm management challenge.
Traditional manual egg collection requires:
- Large labor input
- More time consumption
- Higher risk of egg damage
- Difficult quality control

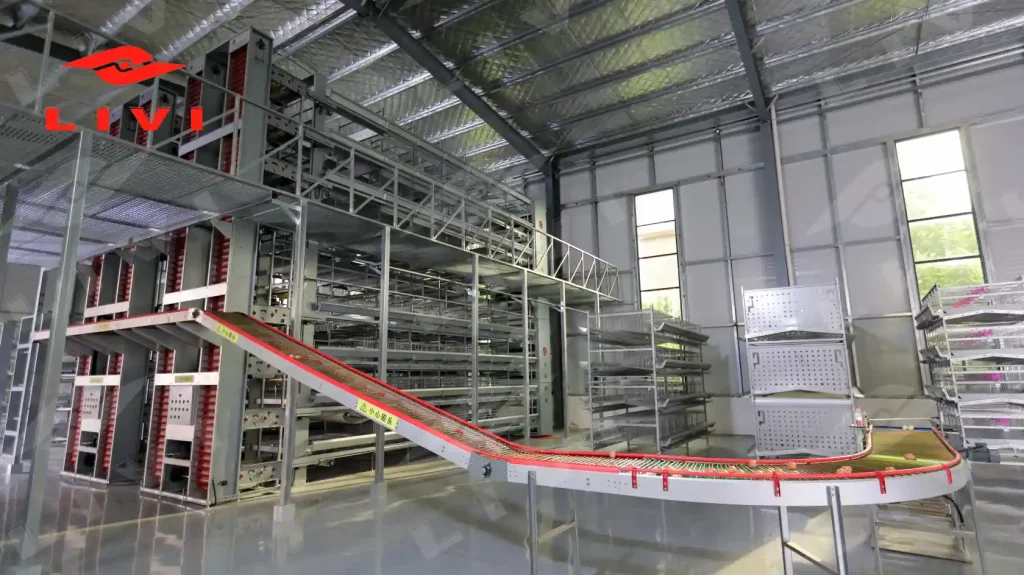

An Automatic Egg Collection System is an automated equipment solution that transports eggs from layer cages to the collection area through conveyor belts and lifting devices.
It helps large-scale poultry farms improve:
- Egg collection efficiency
- Labor utilization
- Egg quality management
- Overall farm automation level
Livi provides customized automatic egg collection solutions integrated with commercial layer cage systems.
Why Do Commercial Layer Farms Need Automatic Egg Collection Systems?
Reduce Labor Requirements
For farms with:
- 20,000 layers
- 50,000 layers
- 100,000+ layers
manual egg collection becomes inefficient.
The automatic egg collection system allows workers to focus on:
- Farm management
- Bird health monitoring
- Production control
Reduce Egg Breakage During Collection
Egg damage directly affects farm profitability.
During transportation, eggs may be damaged due to:
- Improper handling
- Excessive impact
- Unstable transportation
Livi’s system uses:
- Soft egg belts
- Egg lifting devices
- Buffer structures
to reduce collision during transportation.
The system can achieve:
Egg breakage rate ≤0.5%
Improve Egg Farm Automation
A complete layer farm automation system includes:
- Automatic feeding
- Nipple drinking
- Automatic egg collection
- Manure removal
The egg collection system connects the cage system and egg storage area, creating a more efficient production workflow.
How Does Livi Automatic Egg Collection System Work?
Step 1: Egg Transfer from Cage System
After laying eggs, eggs roll onto the egg collection belt installed below the cage.
The egg belt slowly transports eggs toward the collection position.
Step 2: Egg Lifting and Transportation
The motor drives:
- Conveyor belt
- Egg picking claws
- Lifting chains
The egg picking device transfers eggs upward smoothly.
Step 3: Buffer Protection
The buffer device reduces egg rolling speed and impact force.
This helps:
- Reduce broken eggs
- Protect egg quality
Step 4: Central Egg Collection
The transverse egg conveyor transports eggs to:
- Egg storage room
- Egg sorting equipment
- Packaging line
Main Components of Automatic Egg Collection System
1. Egg Collection Belt (Egg Transfer Belt)
The egg belt is made from high-strength polypropylene material.
Features:
- Resistant to bacteria and fungi
- Acid and alkali resistant
- Does not absorb water
- Resistant to humidity changes
- Anti-static and dust resistant
Benefits:
- Keeps eggs cleaner during transportation
- Provides stable egg movement
- Reduces egg damage
2. Egg Picking Device
The egg picking system consists of:
- Multiple egg claw groups
- Lifting chains
- Connecting shafts
- Side protection plates
The structure prevents eggs from falling during transportation.
The drive system provides:
- Stable operation
- Low noise
- Long service life
- Low failure rate
3. Egg Outlet and Buffer Device
The buffer system controls egg movement speed when eggs enter the collection area.
Advantages:
- Reduces impact
- Protects egg surface
- Improves collection reliability
4. Egg Filtering System
For farms requiring higher egg quality management, Livi provides soft egg filtering systems.
Functions:
- Collect soft-shell eggs
- Separate impurities
- Prevent contamination of normal eggs
5. Central Egg Conveyor System
The central egg conveyor consists of:
- Metal rod chain conveyor
- Straight sections
- Curved sections
- Motor drive system
It transports collected eggs directly to:
- Storage rooms
- Egg grading machines
- Packaging systems
Automatic Egg Collection System Specifications
| Item | Specification |
|---|---|
| Product Name | Automatic Egg Collection System |
| Application | Commercial Layer Farms |
| Compatible Cage | H Type Layer Cage / A Type Layer Cage |
| Machine Type | 3-tier / 4-tier / 5-tier Egg Collection Machine |
| Machine Size (3 Tier) | 1.8×0.95×2.3m |
| Machine Size (4 Tier) | 1.8×0.95×3.0m |
| Machine Size (5 Tier) | 1.8×0.95×3.7m |
| Power | 0.75-3.0 kW |
| Egg Collection Capacity | 3,000-6,000 eggs/hour |
| Egg Breakage Rate | ≤0.5% |
| Voltage | 380V |
| Customization | Available |
Automatic Egg Collection System for Different Farm Sizes
Small Commercial Layer Farms
Suitable for:
- 5,000-20,000 layers
Main requirement:
Reduce manual collection workload.
Medium Layer Farms
Suitable for:
- 20,000-100,000 layers
Recommended:
- Automatic egg collection
- Feeding automation
- Manure removal
Large Commercial Egg Farms
Suitable for:
- 100,000+ layers
Recommended:
Complete automation:
- Cage system
- Feeding
- Egg collection
- Manure management
- Environmental control
Need a Complete Egg Farm Automation System?
Livi provides cage systems, feeding, egg collection and manure management solutions.
Button: Request Equipment Proposal
Integration with Livi Layer Cage Systems
Livi automatic egg collection systems can be integrated with:
H Type Layer Cage System
Suitable for:
- Large-scale commercial egg farms
- High automation projects
A Type Layer Cage System
Suitable for:
- Medium-scale farms
- Cost-efficient layer production
The system can be customized according to:
- Cage design
- House dimensions
- Farm capacity
Installation Requirements
To ensure stable operation:
Poultry House Requirements
The chicken house should have:
- Hardened floor
- Flat surface
- Level difference controlled within required tolerance
Equipment Installation
Installation includes:
- Cage alignment adjustment
- Egg belt installation
- Conveyor installation
- Electrical connection
- Trial operation
Professional installation helps prevent:
- Belt deviation
- Egg transportation problems
- Equipment vibration
Why Choose Livi Automatic Egg Collection System?
Complete Layer Farm Automation Solution
Livi provides:
- Layer cage systems
- Automatic feeding systems
- Egg collection systems
- Manure removal systems
- Farm design services
Customized Engineering Support
Different farms have different requirements.
Livi designs egg collection solutions based on:
- Farm scale
- Cage type
- Chicken house layout
- Production targets
Project Application Example
30,000 Layers Poultry Farm Solution in Kenya
For a 30,000-layer commercial farm, Livi can integrate:
- H Type Layer Cage System
- Automatic Feeding System
- Nipple Drinking System
- Automatic Egg Collection System
- Manure Belt Removal System
The automatic egg collection system helps the farm reduce labor dependency and improve daily egg handling efficiency.
FAQ
What is an automatic egg collection system?
An automatic egg collection system is equipment that automatically transports eggs from layer cages to collection areas through belts, elevators and conveyors.
Why do commercial egg farms need automatic egg collection?
Large farms need automation to reduce labor costs, improve collection efficiency and reduce egg breakage.
What is the egg breakage rate of Livi egg collection system?
The system can achieve an egg breakage rate of ≤0.5% under proper installation and operation conditions.
Can the system work with H Type Layer Cage?
Yes. Livi automatic egg collection systems are designed for integration with H Type and A Type layer cage systems.
How many eggs can the system collect per hour?
Depending on the machine configuration, collection capacity ranges from approximately 3,000 to 6,000 eggs per hour.
Can Livi customize the egg collection system?
Yes. Machine dimensions and configurations can be customized according to customer farm requirements.
