H Type Layer Cage for Commercial Egg Farms
LIVI H Type Layer Cage for commercial egg farms. Automatic feeding, drinking, manure removal and egg collection. Factory price available.

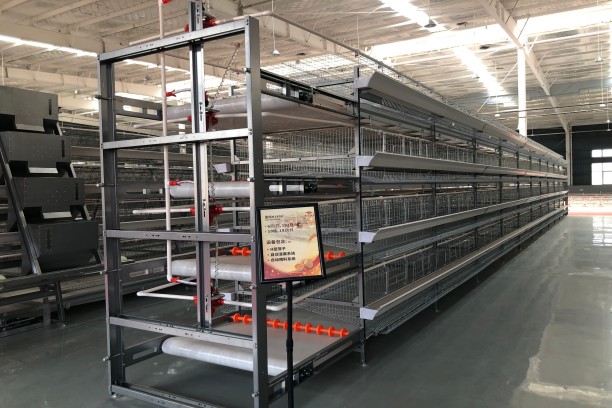

LIVI H Type Layer Cage 1800×600×430 mm is a fully automatic commercial egg layer cage system designed for modern poultry farms that require high stocking density, low labor cost, and stable egg production. The system integrates automatic feeding, nipple drinking, manure removal, egg collection, and climate control into one complete solution for farms from 10,000 to 200,000 laying hens.
Compared with traditional A-type cages, the H-type stacked design can double the number of birds housed in the same building area while improving ventilation and management efficiency. According to LIVI technical data, the 1800×600×430 mm model is available in 3-tier, 4-tier, 5-tier, and 6-tier configurations, making it one of the most popular cage systems for large-scale egg production. Source: LIVI Layer Cage Brochure, H-Type Layer Cage section. (1800×600×430 mm specification)
Why the 1800×600×430 mm H-Type Cage Is Popular
| Feature | Benefit for Egg Farms |
|---|---|
| 1800 × 600 × 430 mm cage size | High bird capacity with comfortable feeding space |
| 4-door design | Easy bird transfer and daily inspection |
| 7° egg rolling floor | Smooth egg collection with <0.3% breakage target |
| Hot-dip galvanized wire mesh | Corrosion resistance 3–4× higher than cold galvanized mesh |
| Automatic manure belt | Cleaner house and lower ammonia levels |
| Integrated climate control | Stable temperature, humidity, and ventilation |
Source: LIVI brochure data for H-Type Layer Cage and environmental control system. Hot-dip galvanized mesh, 7° floor angle, automatic feeding/drinking/manure/egg collection.
Technical Specifications
| Model | Birds / Set | Specification |
|---|---|---|
| 3-Tier 4-Door | 144 birds | 1800 × 600 × 430 mm |
| 4-Tier 4-Door | 192 birds | 1800 × 600 × 430 mm |
| 5-Tier 4-Door | 240 birds | 1800 × 600 × 430 mm |
| 6-Tier 4-Door | 288 birds | 1800 × 600 × 430 mm |
How the System Works
1. Automatic Feeding
Feed saving
The H-type feeding system uses a V-shaped feed trough and traveling feeder to distribute feed evenly across all cages. The design helps reduce feed waste by up to 10% and keeps feed fresh by preventing accumulation of old feed.
2. Nipple Drinking
360° drinking
Each cage row is equipped with stainless-steel nipple drinkers with 360° activation and a pressure regulator. The front water line allows medication dosing, flushing, and water consumption monitoring.
3. Automatic Egg Collection
Low breakage
Eggs roll smoothly onto the collection belt because of the 7° floor slope. LIVI’s elevator egg collector can handle 12,000+ eggs per hour while minimizing collisions and shell damage.
4. Manure & Climate Control
IoT ready
Every tier includes a PP manure belt, and the house can be connected to the BH9200 environmental controller for automatic ventilation, cooling pads, lighting, and alarm management.
CTA: Get Farm Design
H Type vs A Type Layer Cage: Which System Is Better for Commercial Egg Farms?
| Feature | H Type 1800×600×430 | A Type Cage |
|---|---|---|
| Stocking density | 2× higher | Standard |
| Maximum tiers | Up to 10 tiers | Usually 3–4 tiers |
| Automation level | Full automation | Semi or full automation |
| Labor requirement | Lower | Higher |
| Land utilization | Excellent | Moderate |
Case Study: 30,000 Layers H Type Layer Cage Project
30,000 Layers Commercial Egg Farm Project with LIVI H Type Layer Cage System
A poultry farm planned to establish a 30,000-layer commercial egg production project and required a reliable cage system with high efficiency, easy management, and automation capability.
The customer needed a solution that could:
Maximize poultry house utilization
Reduce daily labor requirements
Improve feeding and egg collection efficiency
Maintain a cleaner farm environment
LIVI Solution
Based on the farm capacity and production requirements, LIVI provided a complete H Type Layer Cage System solution.
Project Configuration:
Item Specification
Farm Capacity: 30,000 laying hens
Cage Type: H Type Layer Cage
Cage Size: 1800 × 600 × 430 mm
Cage Configuration: 4-tier automatic cage system
Feeding System: Automatic feeding system
Drinking System: Nipple drinking system
Egg Collection: Automatic egg collection system
Manure Management: Automatic manure removal system
Project Benefits
With LIVI’s H Type Layer Cage System, the farm achieved:
Higher space utilization through vertical cage design
Lower labor demand with automatic feeding and egg collection
Improved farm hygiene through automatic manure removal
More efficient daily management for commercial egg production
Project Summary: This 30,000-layer project demonstrates how LIVI’s H Type Layer Cage System helps poultry farmers build efficient and automated egg production farms with reliable equipment, professional engineering support, and customized farm solutions
Frequently Asked Buyer Questions
What is an H Type Layer Cage?
An H Type Layer Cage is a multi-tier poultry housing system designed for commercial egg production with automated feeding, drinking, egg collection, and manure removal functions.
Is H Type Cage Better Than Battery Cage?
For large commercial egg farms, H-type cages offer:
Higher automation
Better manure management
Lower labor costs
Improved production efficiency
How many chickens can one 1800×600×430 cage hold?

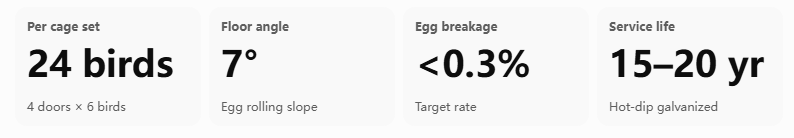

A standard 4-door cage set holds 24 laying hens (6 birds per door). Capacity varies by local welfare regulations and bird size.
What is the price of an H Type Layer Cage System?
Pricing depends on tier number, automation level, house size, and shipping destination. A complete project normally includes cages, feeding, drinking, manure removal, egg collection, and climate control equipment.
How long does the cage system last?
LIVI uses hot-dip galvanized wire mesh with a 275 g/m² zinc coating. Under normal commercial operation, the expected service life is 15–20 years.
Is the system suitable for Africa, the Middle East, or Southeast Asia?
Yes. The system can be installed in steel-structure houses or greenhouse poultry houses and paired with cooling pads, tunnel ventilation fans, and IoT environmental control for hot-climate operation.
How many workers are needed for 50,000 layers?
With automatic feeding, egg collection, and manure removal, many farms can operate a 50,000-layer house with 3–5 workers, depending on local management practices.
Can the system be customized?
Yes. LIVI offers 3-tier to 10-tier layouts, single or double-story houses, central egg collection lines, and IoT monitoring platforms.
Recommended Farm Sizes
| Farm Capacity | Recommended Configuration |
|---|---|
| 10,000 layers | 3-tier 4-door system |
| 20,000 layers | 4-tier 4-door system |
| 50,000 layers | 5-tier 4-door + central egg collection |
| 100,000+ layers | 6-tier 4-door + IoT climate control |
Why Global Egg Farms Choose LIVI
- 80+ export countries across Africa, Asia, Europe, and the Americas.
- Complete poultry house solution from steel structure to automation equipment.
- Remote monitoring through mobile, PC, and IoT platform.
- Factory-direct manufacturing with customized layouts and installation support.
- Integrated feeding, drinking, egg collection, manure removal, and climate control from a single supplier.
LIVI’s H Type Layer Cage system is designed for high-density commercial egg production, using hot-dip galvanized cages, automatic feeding, nipple drinking, manure belts, and egg collection lines to reduce labor and improve egg quality.
Get a Layer Farm Layout & Quotation
If you are planning a 20,000–200,000 layer farm, LIVI can provide 3D poultry house design, equipment layout drawings, power and water calculations, and a complete project quotation for the 1800×600×430 mm H Type Layer Cage System.
